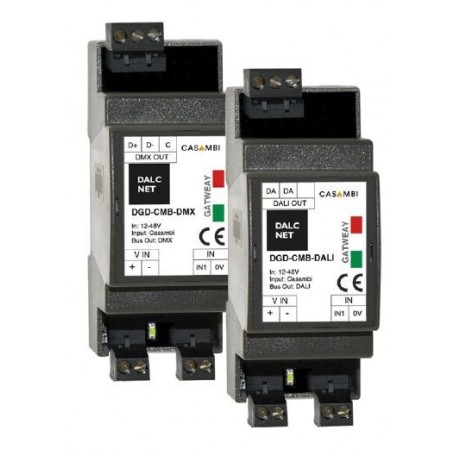

DGD-CBM-DMX
Signal Converter, Input 12-48Vdc, Output DMX, Command CASAMBI to DMX
Descrizione
Scheda tecnica
Scheda tecnica
- Input Range
- 12-48Vdc
- Channels Output
- 1
- Bus
- DMX
- Working Temperature Range
- -40/+60°C
- Unit Weight
- 60 g
- Total Package Weight
- 90 g
- Packaging Dimension
- 124x71x48mm
- Pieces Per Package
- 1 pcs
- Warranty
- 5 years
- Firmware Version
- 1.0
Documenti Allegati
Datasheet
Certificate

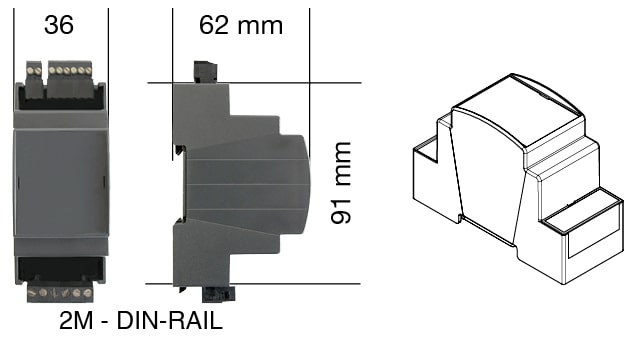

Dimensioni e Ingombri

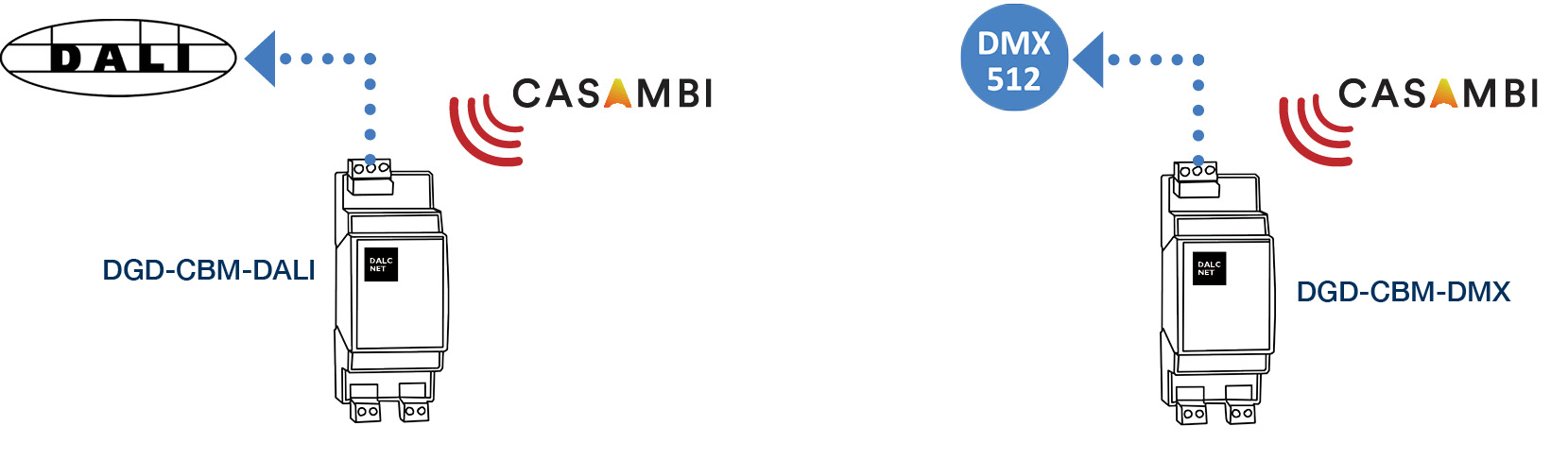

Schema di Collegamento
