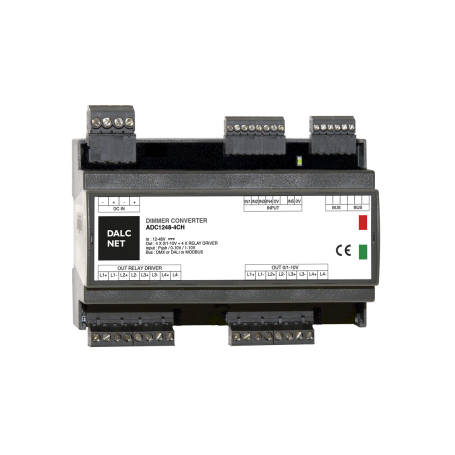

ADC1248-4CH-DMX
Serie ADC1248-4CH - Dimmer Converter 4 Analog CH, 4 Relay Driver CH, Input 12-24-48Vdc, Output 4x 0-10 / 1-10, 4x Relay Driver, 1xChannel Status LEDs, Command DMX, Input 4x Master 1x, N.O. Push Buttons / 0-10 /1-10 / Potentiometer
Descrizione
Caratteristiche
Scheda tecnica
Scheda tecnica
- Input Range
- 12-48Vdc
- Channels Output
- 4
- Analog Input
- 0-10V, 1-10V
POTENTIOMETER
PUSH BUTTON - Bus
- DMX
- Working Temperature Range
- -40/+60°C
- Unit Weight
- 170 g
- Total Package Weight
- 240 g
- Packaging Dimension
- 156x124x71mm
- Pieces Per Package
- 1 pcs
- Warranty
- 5 years
- Firmware Version
- 1.2
Documenti Allegati

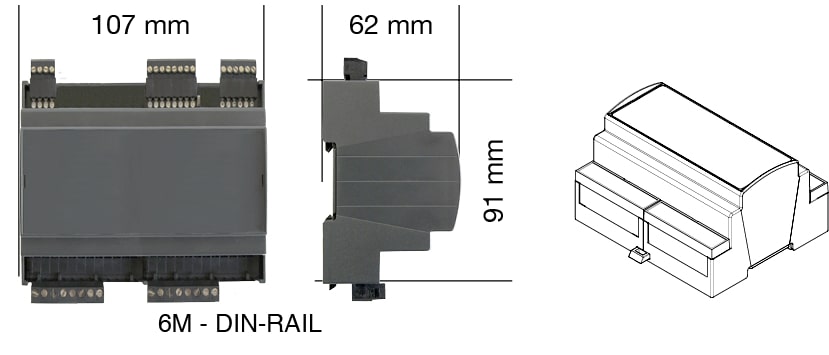

Dimensioni e Ingombri

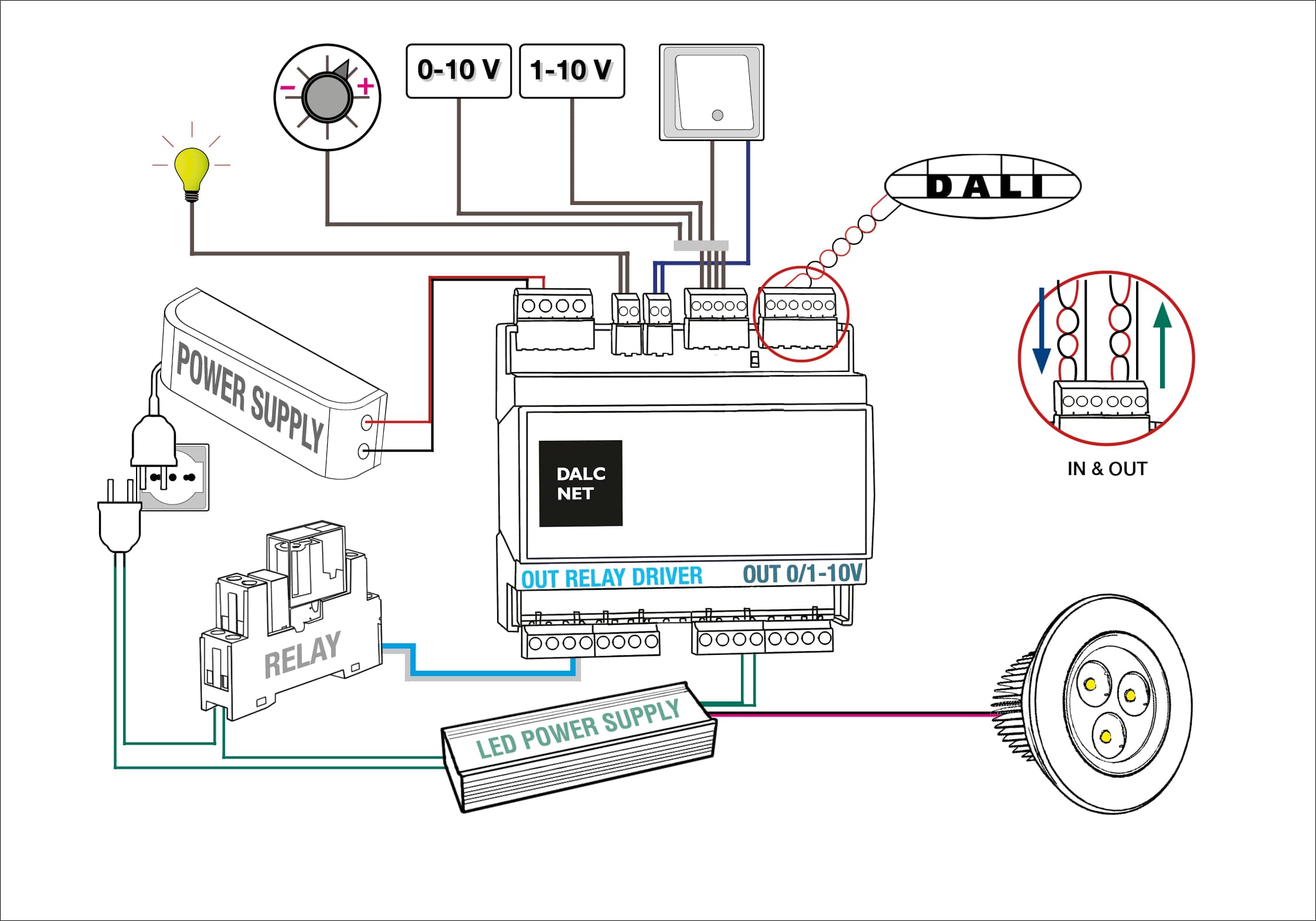

Schema di Collegamento
