DLD1248-4CV-DMX

Serie DLD1248-4CH-PRO - Led Bus+Dimmer+Fader+Driver 4CH Constant Voltage Input 12-48Vdc, Output 4x5A - 1x20A, Command DMX, 4 N.O. Push Button, 0-10V / 1-10V, Potentiometer

Need more informations?

Request quotation

Features

Data sheet

Input Range: 12-48Vdc
Max Output Power: 4x5A
Channels Output: 4
Analog Input: 0-10V, 1-10V
POTENTIOMETER
PUSH BUTTON
Bus: DMX
Working Temperature Range: -40/+60°C
Unit Weight: 32,5 g
Total Package Weight: 720 g

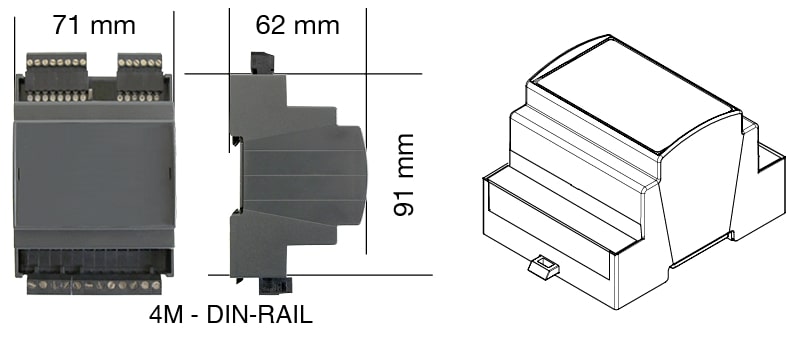

Packaging Dimension: 124x85x71mm
Pieces Per Package: 4 pcs
Warranty: 5 years
Firmware Version: 1.3

Attachments

Datasheet

DLD1248-4CV-DMX (ENG)

Download

DLD1248-4CV-DMX (ITA)

Download

Certificate

DLD1248-4CV-DMX (ENG)

Download
