DLD1248-4CC-DMX-PHO1

DLD1248-4CC-DMX

Serie DLD1248-4CH-PRO - Led Bus+Dimmer+Fader+Driver 4CH Constant Current Input 12-48Vdc, Output 4x700mA - 1x2.8A, Command DMX, 4 N.O. Push Button, 0-10V / 1-10V, Potentiometer

Need more informations?

Request quotation

Description

Features

Data sheet

AVAILABLE ON ORDER
Data sheet
Input Range
12-48Vdc
Max Output Power
1x2.8A
Channels Output
4
Analog Input
0-10V, 1-10V
POTENTIOMETER
PUSH BUTTON
Bus
DMX
Working Temperature Range
-40/+60°C
Unit Weight
125 g
Total Package Weight
800 g
Packaging Dimension
124x85x71mm
Pieces Per Package
4 pcs
Warranty
5 years
Firmware Version
1.0

Attachments

Datasheet

DLD1248-4CC-DMX (ENG)
Download
DLD1248-4CC-DMX (ITA)
Download

Certificate

DLD1248-4CC-DMX (ENG)
Download

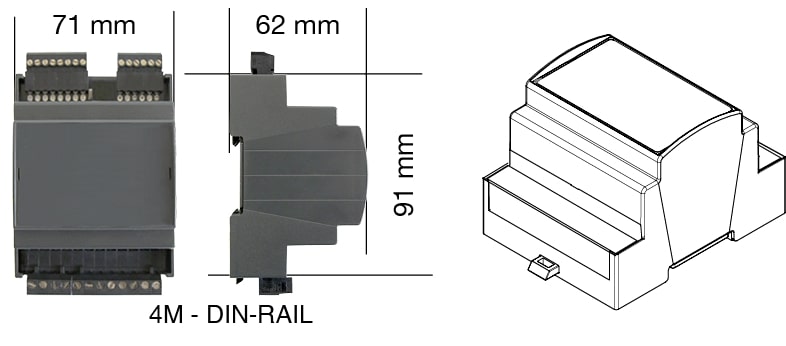

Overall dimensions

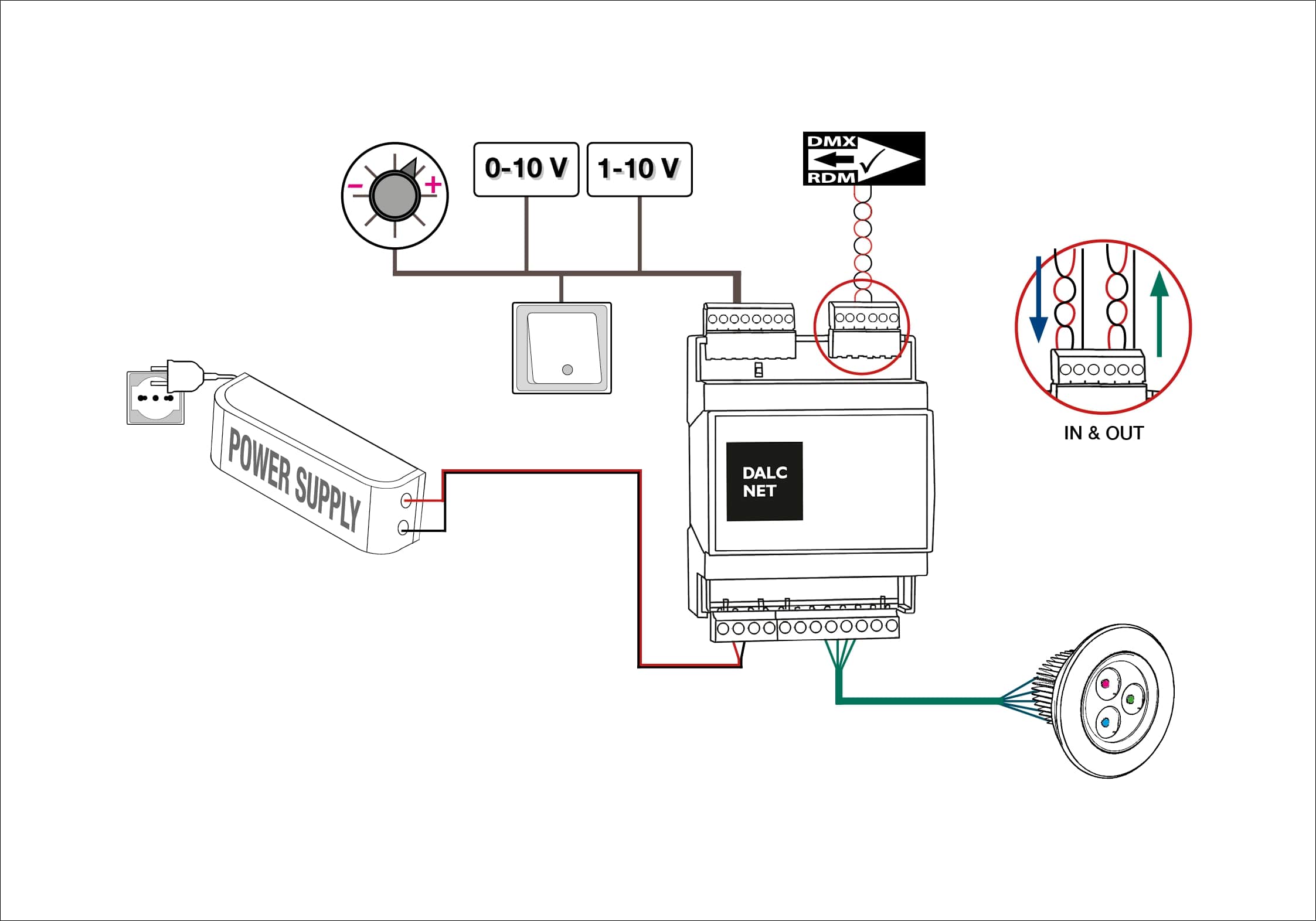

Installations
