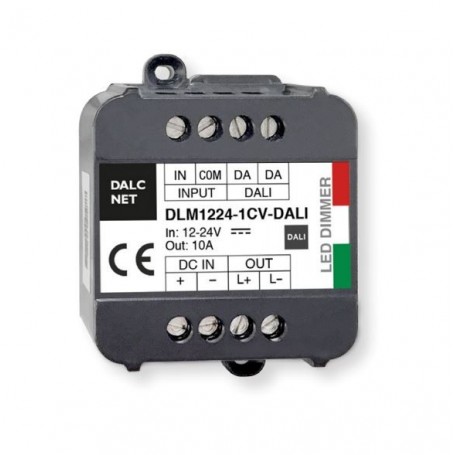

DLM1224-1CV-DALI
Led Bus+Dimmer+Fader+Driver 1CH Constant Voltage Input 12-24Vdc, Output 1x10A, Command DALI, Analogic Auto Detection N.O Push Button / 0-10V / 1-10V / Potentiometer
Description
Features
Data sheet
Data sheet
- Input Range
- 12-24Vdc
- Max Output Power
- 1x10A
- Channels Output
- 1
- Analog Input
- 0-10V, 1-10V
POTENTIOMETER
PUSH BUTTON - Bus
- DALI
- Working Temperature Range
- -10/+40°C
- Unit Weight
- 23 g
- Total Package Weight
- 306 g
- Packaging Dimension
- 56x68x35mm
- Pieces Per Package
- 10 pcs
- Warranty
- 5 years
- Firmware Version
- 1.3
Attachments
Datasheet
Certificate

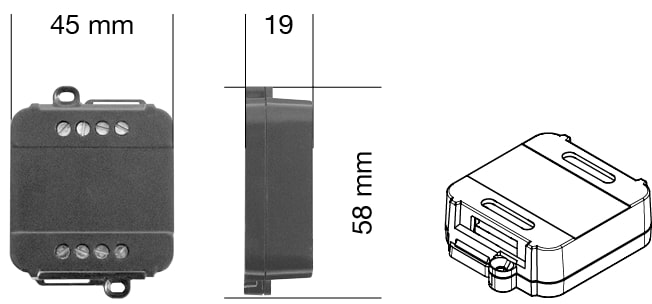

Overall dimensions

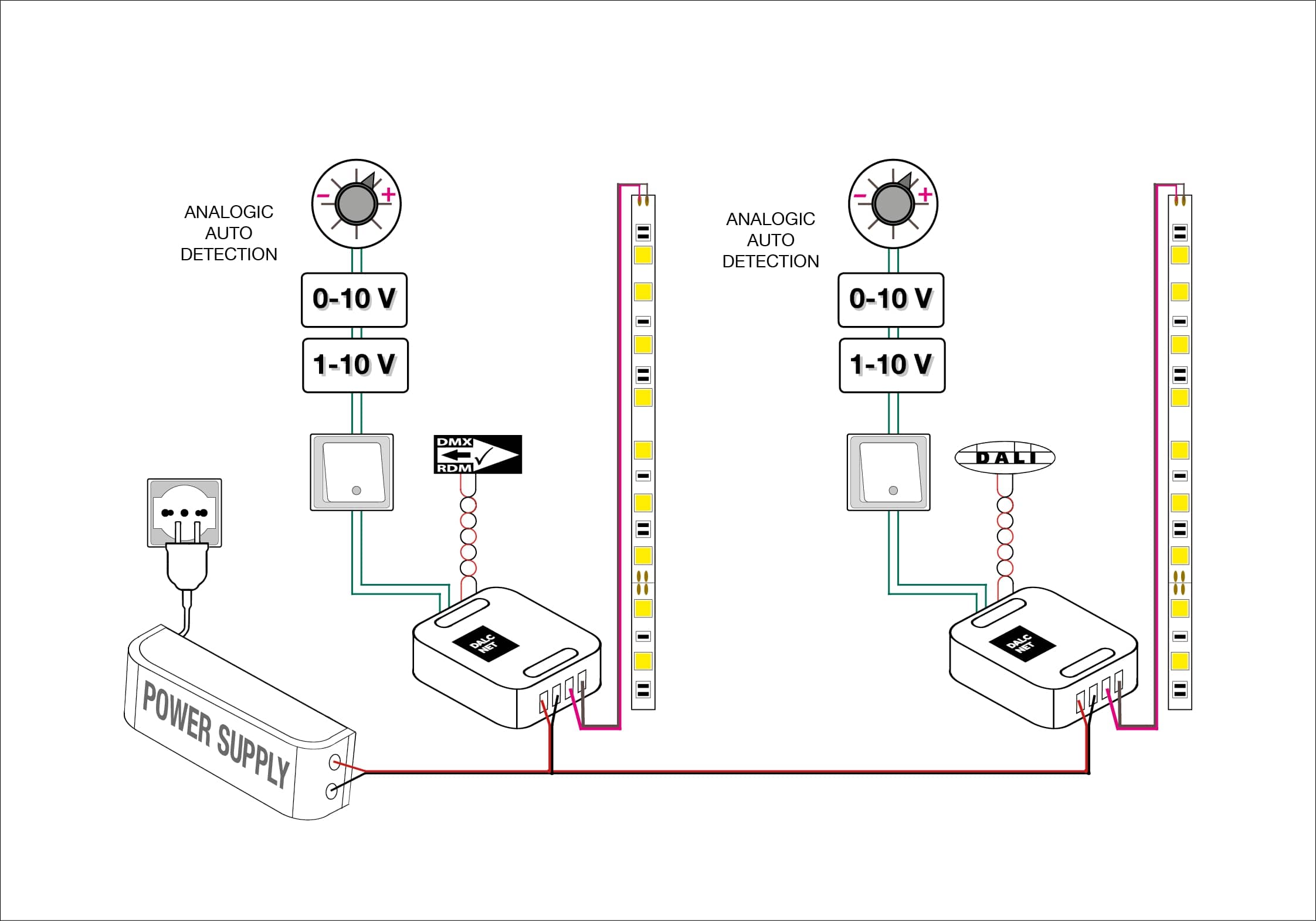

Installations
